Manufacturing Infrastructure

CNC Machining Capability

Purpose-built CNC machining infrastructure optimized for pattern manufacturing across a wide range of sizes and geometries.

Heavy duty

CVM 1680

Vertical Machining Centre — Large Format

CNC Controller

Spindle Type

Spindle Speed

Guideways

Drive System

Best For

Mitsubishi M80

BBT40 — High Rigidity

8,000 RPM

High-Precision LM Guideways

Precision Ball Screws

Large, complex pattern plates

precision center

CVM 700

Vertical Machining Centre — Medium Format

CNC Controller

High-Precision Servo

Coolant System

Surface Finish

Applications

Best For

Detailed, tight-tolerance work

metrlogy

Inspection Infrastructure

Industrial 3D scanning — capturing existing patterns, castings, or components and reconstructing accurate CAD geometry for pattern manufacture.

Volumetric Accuracy

Up to 0.020 mm

Point Resolution

Up to 0.050 mm

Scan Speed

1,500,000 pts/sec

Light Source

Blue Laser (Class 2)

Output Formats

STL, OBJ, STEP, IGES

Surface Compatibility

Reflective & complex geometry

🔵 Blue Laser Technology

Superior resolution on reflective, dark, and complex surfaces — no powder coating required.

📊 CAD Comparison & Deviation Analysis

Real-time mesh generation and deviation analysis against nominal CAD geometry.

🏭 No Drawings Required

The physical part is the reference. Worn originals and physical samples are fully reconstructed.

Reverse Engineering & Metrolog

3D Scanning Capability

Every pattern is subject to a structured dimensional inspection protocol before dispatch.

Granite Surface Plate

⬜

2000 × 2000 mm large-format granite reference surface providing a thermally stable datum for dimensional verification of full-size pattern assemblies.

📏

Digital Height Gauges

Full complement of calibrated digital height gauges, verniers, and precision instruments for accurate, repeatable measurement across all pattern geometries.

📏

Pre-Dispatch Sign-Off

All patterns undergo formal dimensional inspection before dispatch — results are documented and available to customers as part of the quality record.

Integrated Coolant & Lubrications

Consistent Dimensional Control

Complex pattern parts, core boxes

Conventional Machinery

Lathe machine for inserts and turned finishing

Radial drilling machine for drilling operations

Planning machine for flat pattern surfaces

Cutting machine for pattern blocks

Grinding machine for surface finishing

Industrial Utilities

Industrial air compressor system

Material handling equipment and forklifts

Workshop Support

Conventional Machinery

& Workshop

Supporting VMC operations with a full conventional machining environment — in-house finishing without outsourcing delays.

Professional-grade power tools

Full workshop utilities for pattern assembly and fitting

Our Workshop

The Machining Fleet

Six specialized production lines calibrated for high-tolerance execution, handling everything from micro-milling to heavy structural fabrication in Jamshedpur.

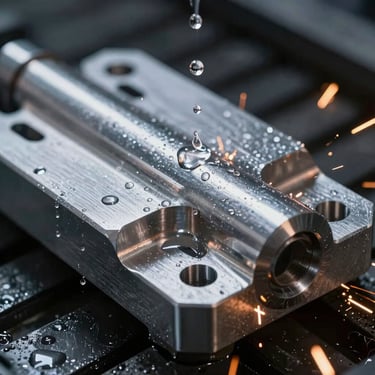

CNC Machining Center

Laser Cutting Machine

Plate Rolling & Forming

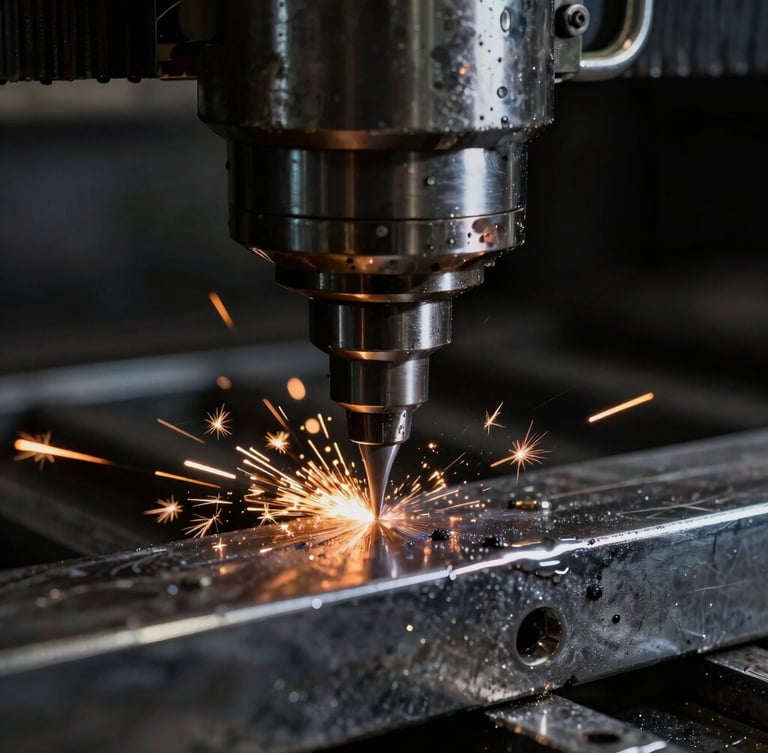

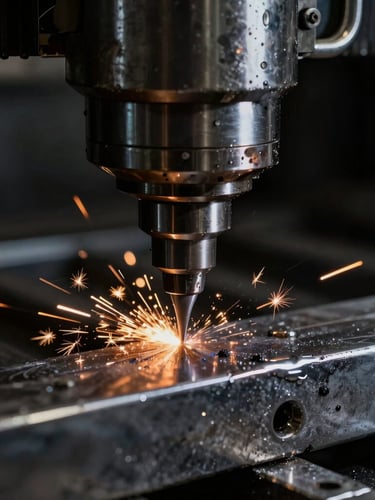

Multi-axis milling engineered for complex geometries. Delivers sub-millimeter execution with a guaranteed ±0.01mm tolerance limit.

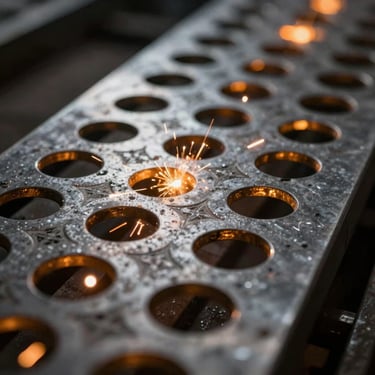

High-power fiber laser cutting optimized for rapid, clean profiles. Handles up to 25mm thick industrial sheets with zero edge distortion.

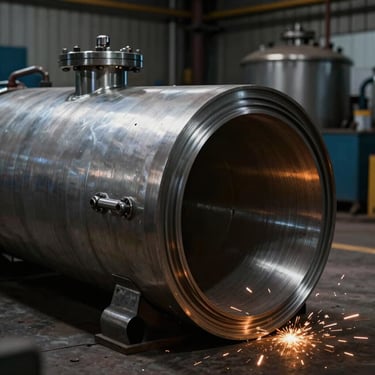

Heavy-duty forming machinery engineered to roll cylinders, cones, and high-pressure vessels from hardened steel and alloy plates.

Lathe Turning

Welding & Fabrication

Drilling & Boring

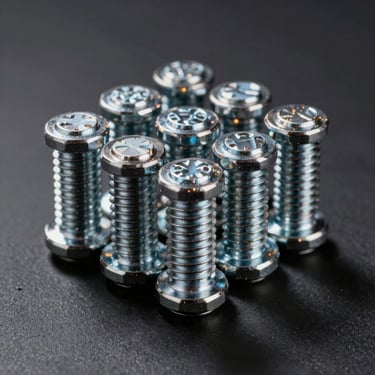

Precision turning from raw iron rods into critical components. Ideal for high-spec industrial shafts, bolts, pins, and bushings.

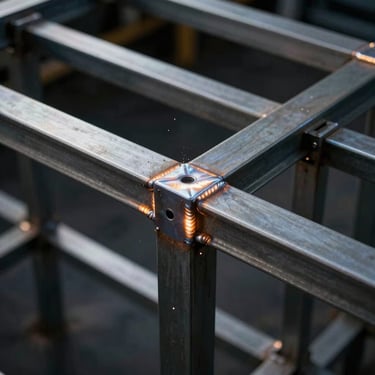

Spec-ready MIG, TIG, and structural arc welding. Built for heavy-duty industrial frames, structural assemblies, and custom plant components.

Radial and high-precision jig boring for flawless alignment. Ensures exact hole placement across heavy plates and cast housings.

Reach Us Now

Ready for Production

Submit your CAD blueprints or technical drawings today. Our engineering team in Jamshedpur will deliver a comprehensive capability quote within 24 hours.
